Liquid Tight Angle connector Yellow PVC Insulated

  • Fixing

  • Fixing

  • UL

  • Casting

  • DN20

  • Socket Union

90degree liquid tight connector ul listed

3/8"-4" UL CUL BSI Certified Liquid tight connector

RANLIC AXWILL 90-degree Liquid Tight Connectors are used to terminate and seal liquidtight flexible metal and liquidtight nonmetallic Type B conduits at 90 degree angles to either an oil tight, liquidtight, or raintight box or enclosure. Connectors can be used with tapered thread female entry or an unthreaded knockout using the provided sealing washer and locknut. These fittings are suitable for grounding up to 1-1/4 inches and furnished with a sealing ring.


  • Terminates liquidtight conduit to a box or enclosure where a 90° bend is required
  • Suitable for LFMC/FNMC-B
  • Features die-cast construction
  • cULus listed
Material ZINC ZAMAK 3
Type 90 degree liquid tight flexible conduit
Finish polishing
Available size lt-880 (3/8"-4")
pvc part yellow blue or purple

AXWILL liquidtight connectors are suitable for use in Class I, Div. 2, Class II, Div. 1 & 2; and Class III, Div. 1 & 2 hazardous locations
Patented split gland-ring is designed to slip onto the conduit quickly gripping the jacket of the conduit, speeding installation, assuring a perfect seal, and preventing pullouts
All components are reusable - AXWILL liquidtight connectors may be easily disassembled and reused after years of service
Sealing washer (included) provides a liquidtight seal when terminating the connector in a threadless opening
Heavy duty locknut included with every AXWILL liquidtight connector assures continuity of ground
UPC bar coded fittings are individually polybagged with a preprinted UPC-A bar code, and packaged in pre-scored tear top cartons for an attractive presentation

All steel/iron components are zinc electroplated for added corrosion protection
3/8" to 1" Steel bodies, 1-1/4" to 4" Malleable iron bodies
3/8" to 1" Steel nuts, 1-1/4" to 4" Malleable iron nuts

For use in outdoor or indoor locations on flexible metallic liquidtight conduit and Type B flexible nonmetallic liquidtight conduit. Use to positively bond the conduit to a box or enclosure.

Liquid Tight Angle connector Yellow PVC Insulated

Liquid Tight Angle connector Yellow PVC InsulatedLiquid Tight Angle connector Yellow PVC InsulatedLiquid Tight Angle connector Yellow PVC Insulated

1.Q: What kind of material you can offer?

2.Q: What kind of standard you are following?
A: We are producing following by UL standard, most popular around the world,

of course, we also have customized products.You can provide your specification.

3.Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.

4.Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.

5.Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.

6.Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.

7.Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.

8.Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.

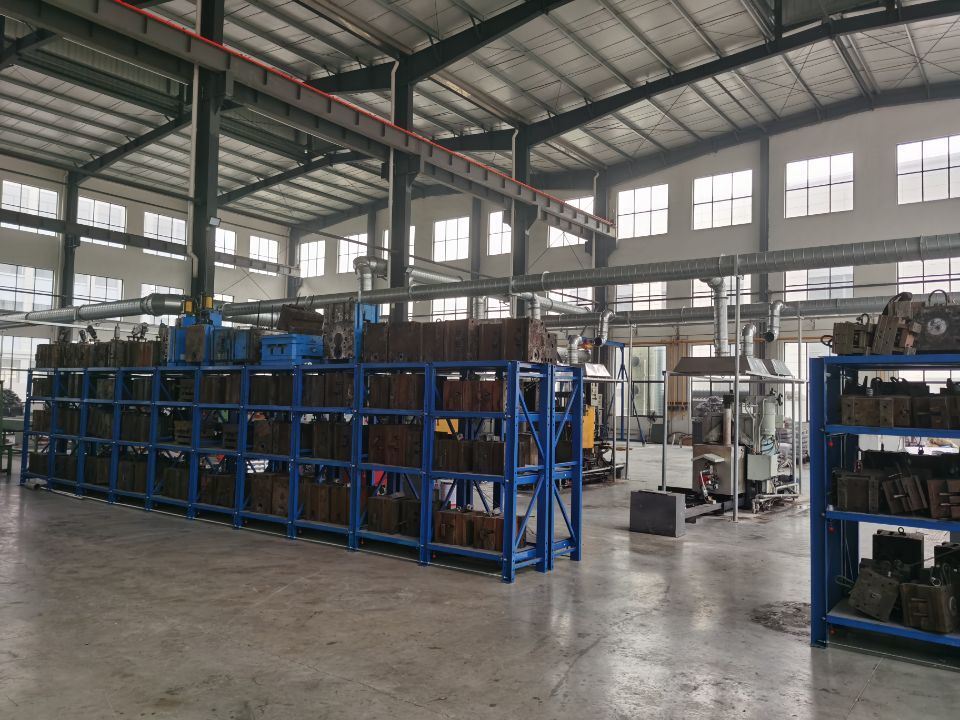

9.Q: How about your capability in manufacturing?

Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.

Choosing us is the best choice.
