One Set Prefab Rough in Box with Brackets

One Set Prefab Rough In Box With Brackets


Open box mounting bracket
1)Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install
9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.


bracket for 16" or 24"stud spacing
1,measure distance between studs
2,cut measurd ruler mark after
3,screw parts together
4,boxes size is 4" or 4-11/16" square


CONSTRUCTION DETAILS:

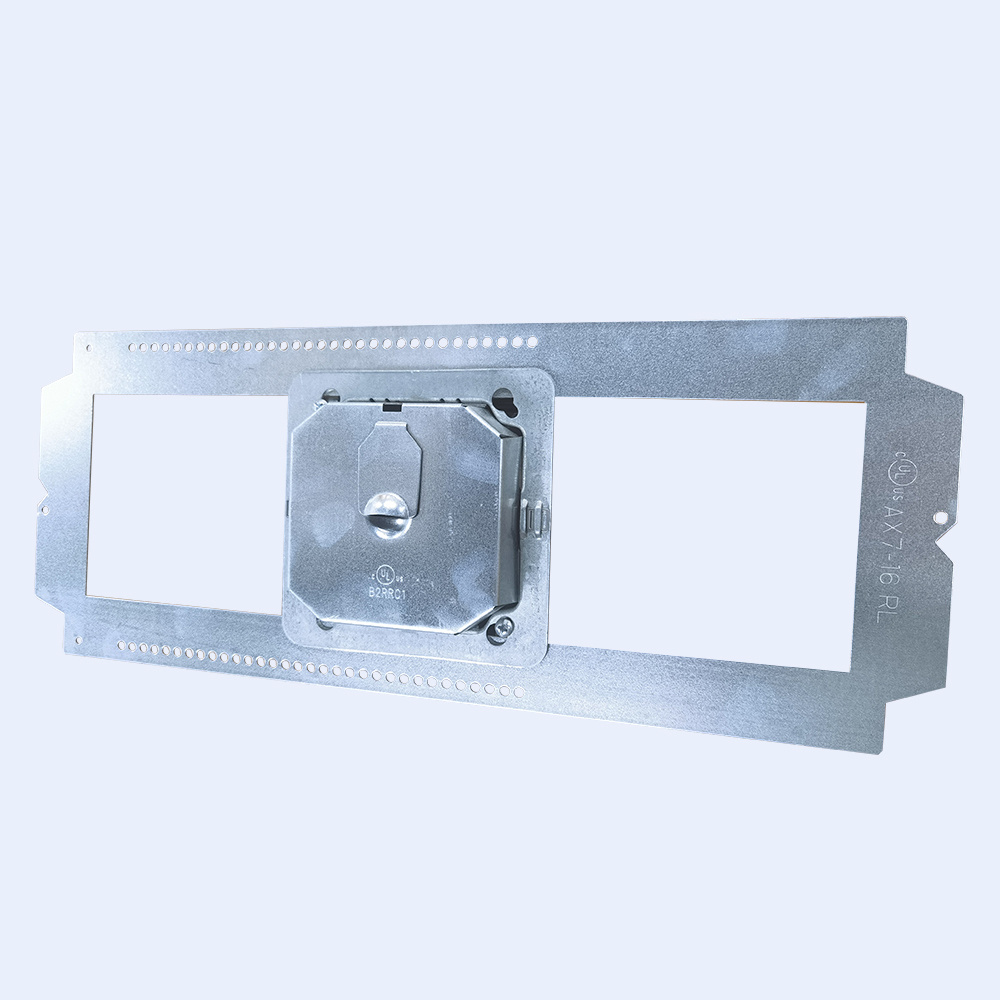

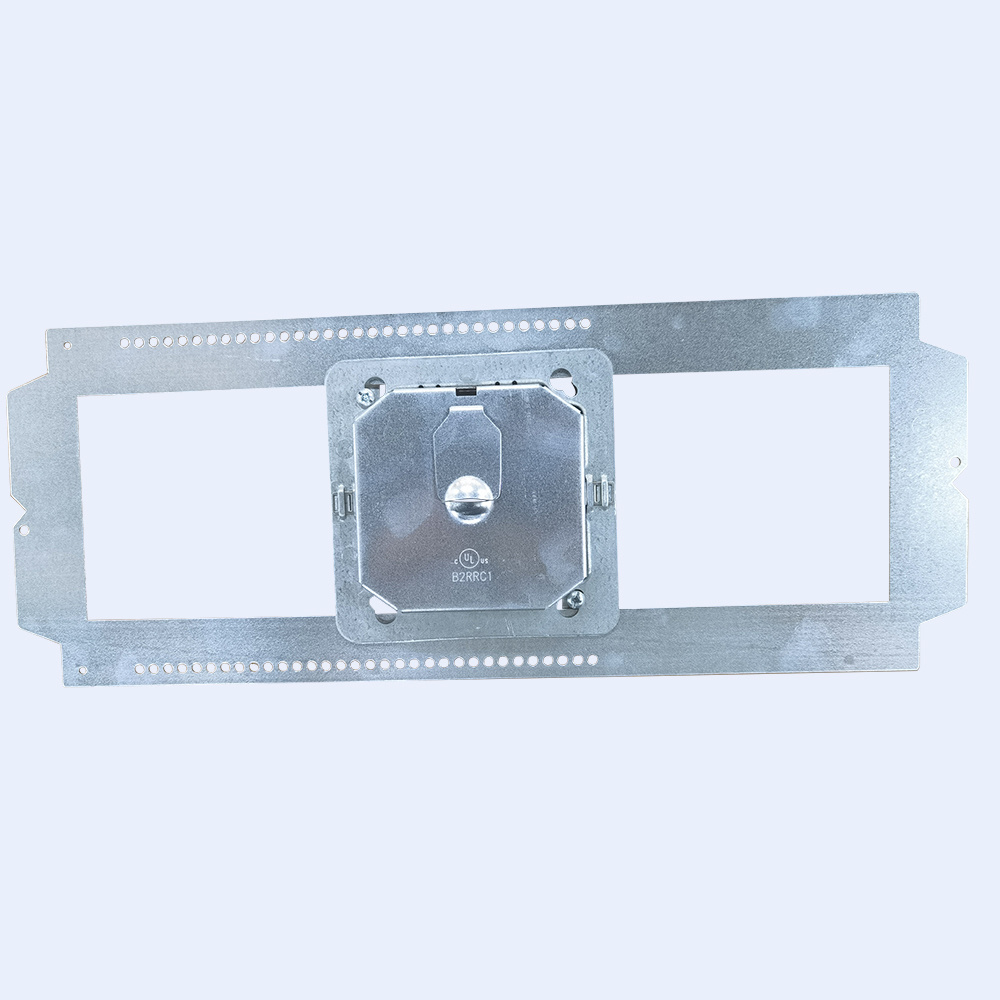

BOX SUPPORT BRACKETS, CAT. NOS. AX7-16, AX7-24 FIG. 1

GENERAL - The basic design, shape and arrangement shall be as illustrated except where variations are specifically described.

1. Bracket - Shaped as shown, Pre-galvanized steel. See following table, FIG., ILL. and dimensions for details.






Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand

Open box mounting bracket
1)Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install
9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.


Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand

Increase strength and rigidity help withstand the stress of stress of drywall installation

Assemblies shipped with box installed on left side of brackets, unless othersie specified

The wall stud improved far-side support stands up during drywall,installation and out performs competitor bracket

Installation steps:
