Ruff-IN Bracket Assemblies Shipped With Box Installed 16" and 24" | 16" and 24" canada and us standard type both have | thickness from 0.70mm to1.0mm |

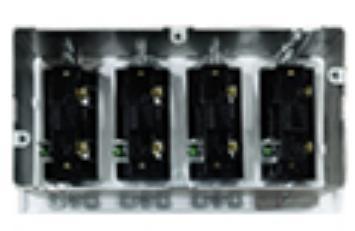

| can assembly outlet steel box for customer | switch sockets and wire also can fix to save time when equip |

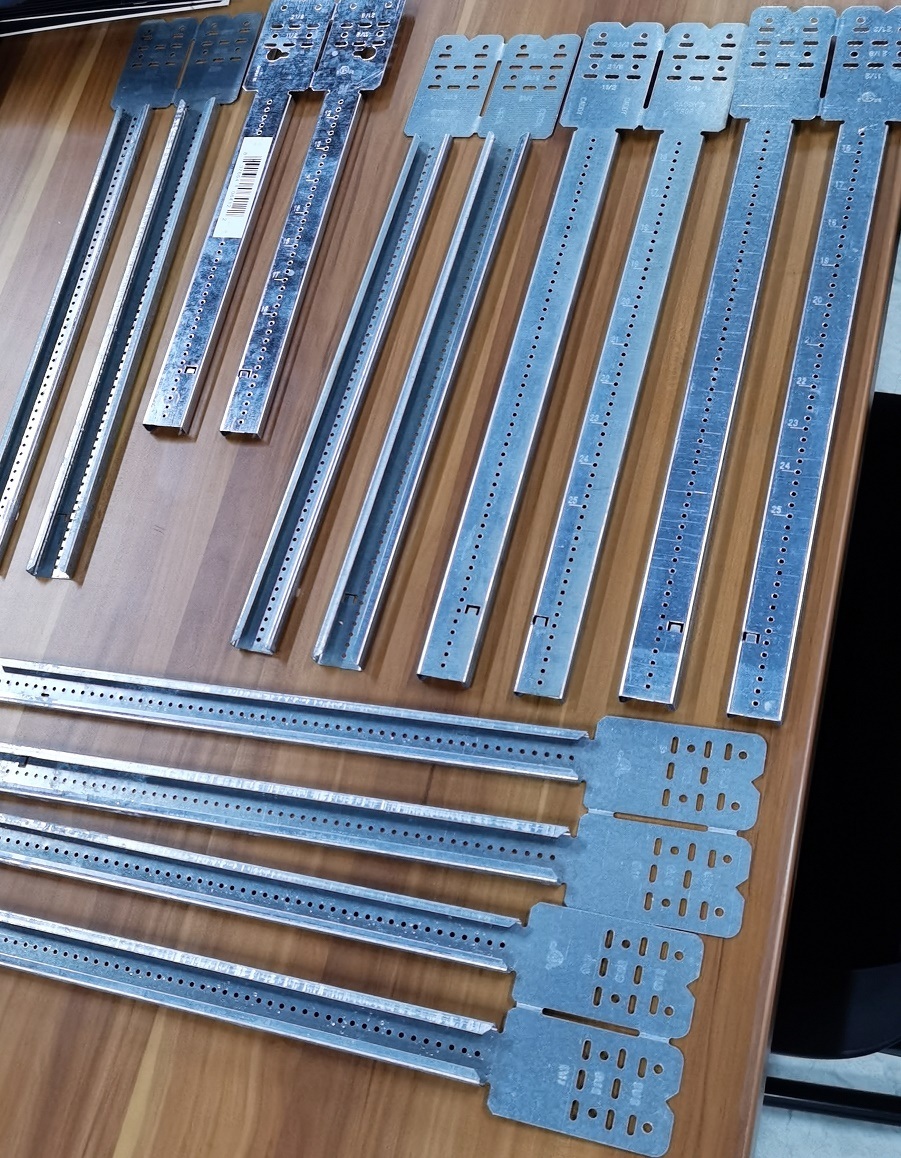

Pre-Fab RUFF-IN products leave all the troubles in our factory, to efficiantly and save time for the end user. Installation steps: - Install Bar hangers on ceiling joists or wall studs by screws.
- Take off screw from stud on bar hanger, installs in 1/2" knockouts located on the bottom of boxes.
- All above 5 Bar hangers are installed with metallic boxes on wall studs or ceiling joists.
- When intended to support a fixture/luminaire in a wall, load capacity is 6 kg (13 Ib).

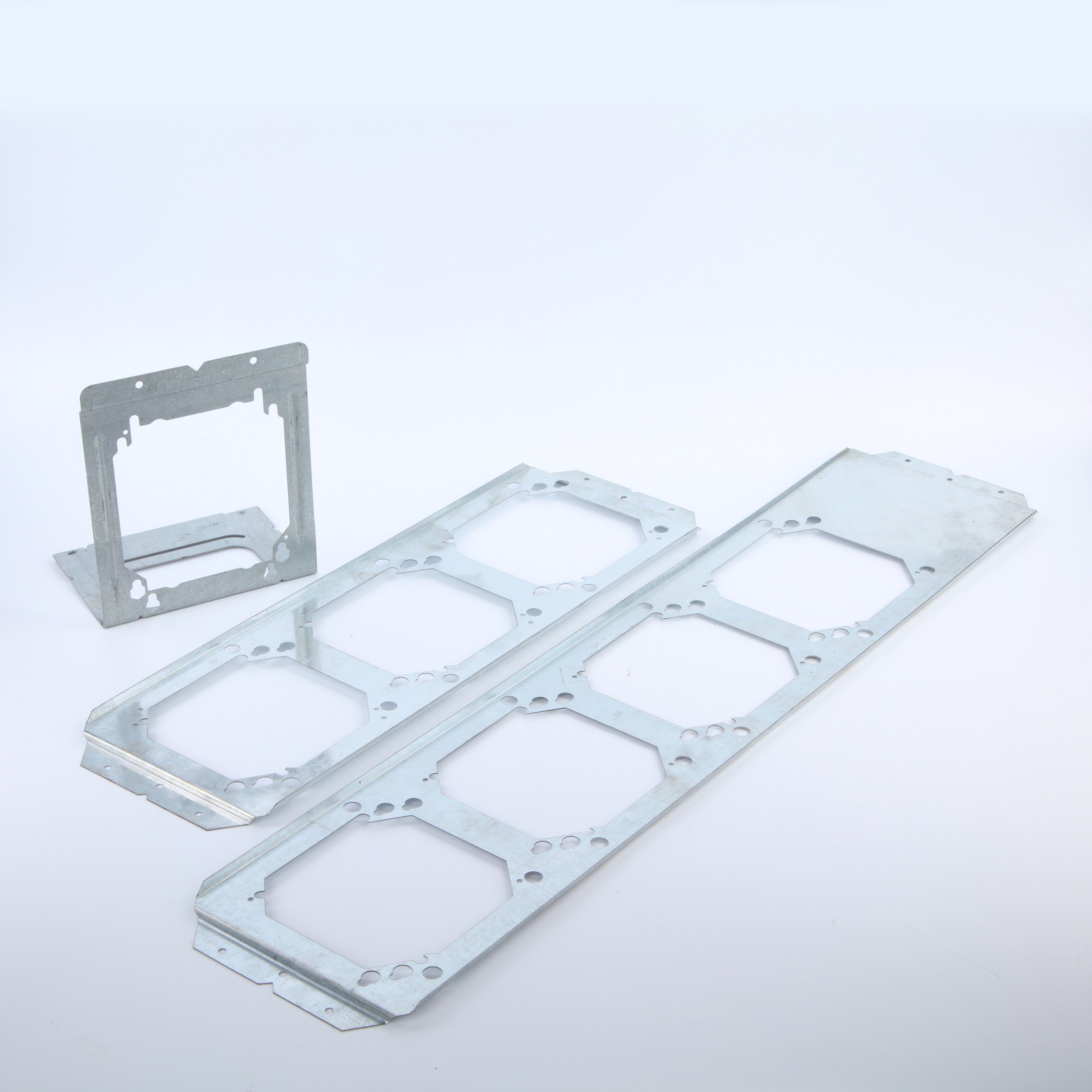

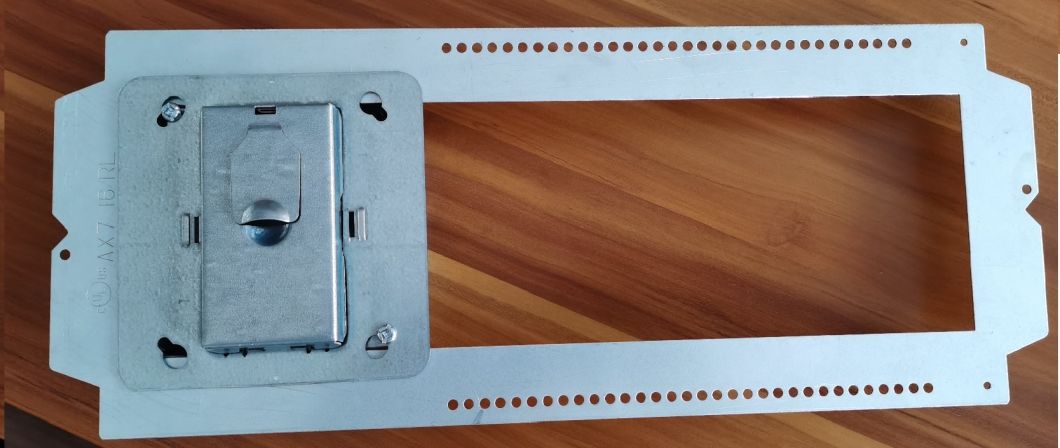

Open box mounting bracket
1)Open box support allows for adjustablility of box position between studs
2) Support most North American boxes and/or plaster rings 4" SQ 4-11/16SQ
5"SQ and multi-gang boxes
3) Fits up to 1-1/2" wide studs 16" &24"on center
4) Compatible with rapid ring & adjustable plaster rings
5) Field cut to adjust to non-standard stud spacings
6) Stamped markings at 1/2" 1/4"and 1" increments to allow the installer to easily locate the desited box position
7) You may contact us for pre-fab assemblies
8) Bracket accessories require no tools to install 9) Fllor stand ensures consistent box height and eliminates need to measure for proper install height.

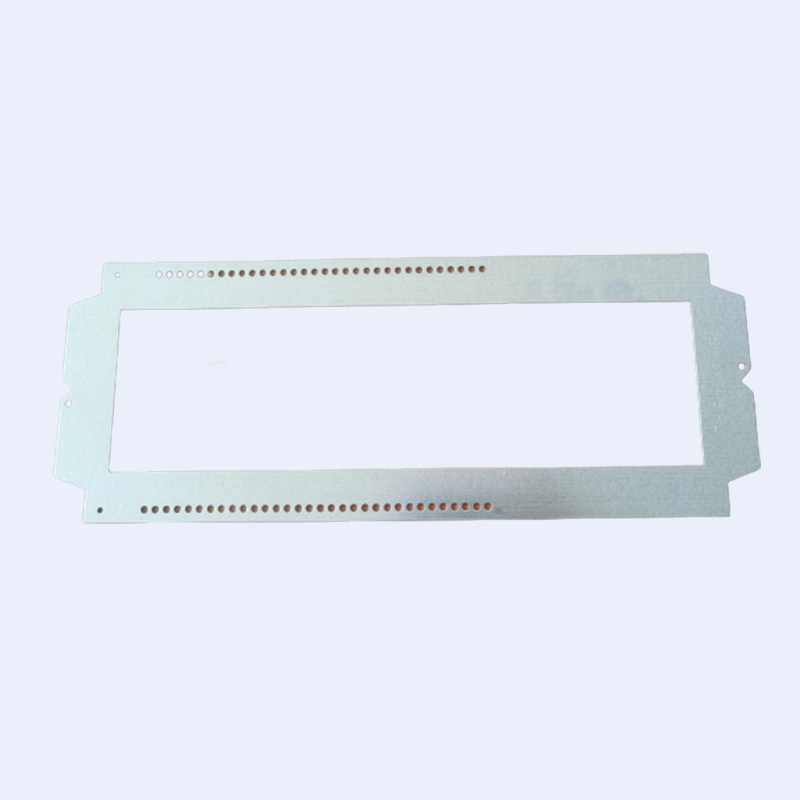

Alignment plate can be cut on a mark to make shorter length brackets
Can be used with floor stand
