UL Listed Steel Flexible Conduit 4"

  • Grey / Black

  • IP68

  • Galvanised

  • Ceiling

  • Carbon Steel

  • UL cUL Bsi

Product Description

UL Listed Steel Flexible Conduit 4"

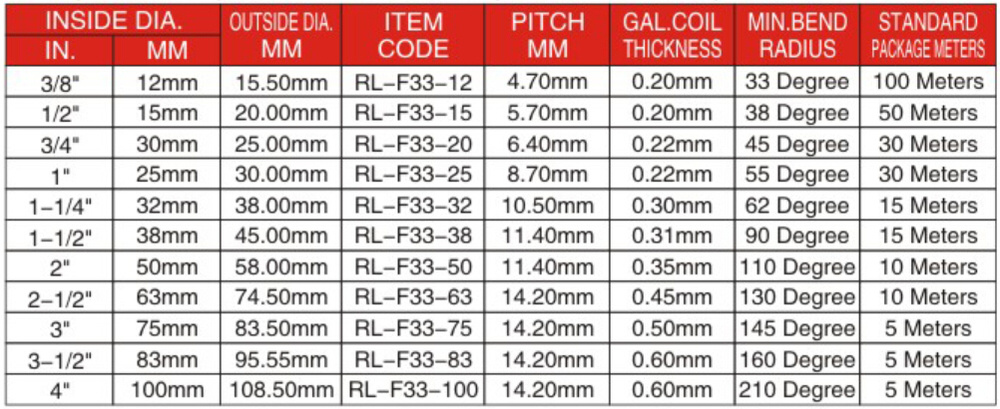

size:from 3/8" to 4" surface : hot dip ,pre galvanized, painting
Thickness : 0.025in to 0.045in Material choose: aluminum, carbon steel, stainless

AXWILL RWA (Reduced Wall Aluminum) Flexible Metal Conduit is suitable for the following installations:

  • Environmental air-handling spaces per NEC 300.22(C)
  • Power and lighting branch circuit conductors and cables for connecting receptacles, luminaires, equipment, office partitions, etc.
  • Metal raceway for wires and cables per NEC (ANSI/NFPA-70) Article 348
  • Motor feeder, branch, and control circuit conductors and cables
  • Class 1, Class 2, Class 3 Remote-control, signaling, and power-limited circuit conductors and cables
  • Fire alarm system conductors and cables of power-limited or non-power-limited fire alarm circuits
  • Voice, data, communications and video cables including CATV and optical fiber cables
  • Concealed or exposed installations per NEC 348 and the applicable NEC provisions
  • Elevators, hoistways, and escalators per NEC 620.21
  • Listed wired fixtures per NEC 410.77(C)
  • Raised floors for connection of information technology per NEC 645.5(D)(2) and 645.5(D)
  • Places of assembly and theaters per NEC 518 and 520
  • Cranes & hoists per NEC 610.11(C)
  • As a grounding conductor for lengths up to 6 feet (20A max) as per NEC 250.118(5)
  • Electric signs and outline lighting per NEC 600.7, 600.31 (1000 volts or less), and 600.32 (>1000 volts)
  • Hazardous location, Class 1, Div. 2, for flexible connectors only per NEC 501.10(B)(2) & 501.30(B)
  • UL 1, 2, & 3 Hour Through-Penetration Firestop Systems: C-AJ-1462, C-AJ-1463, C-AJ-1464, W-L1308, and W-L-1309

1) Hot-dip/electro-gal.steel coil material; work temp: -25 to 350 degree.

2) All package meters available 15m,25m,30m and 100feet.

3) For general wiring installation provides for good flexible bending & vibration.

UL Listed Steel Flexible Conduit 4"

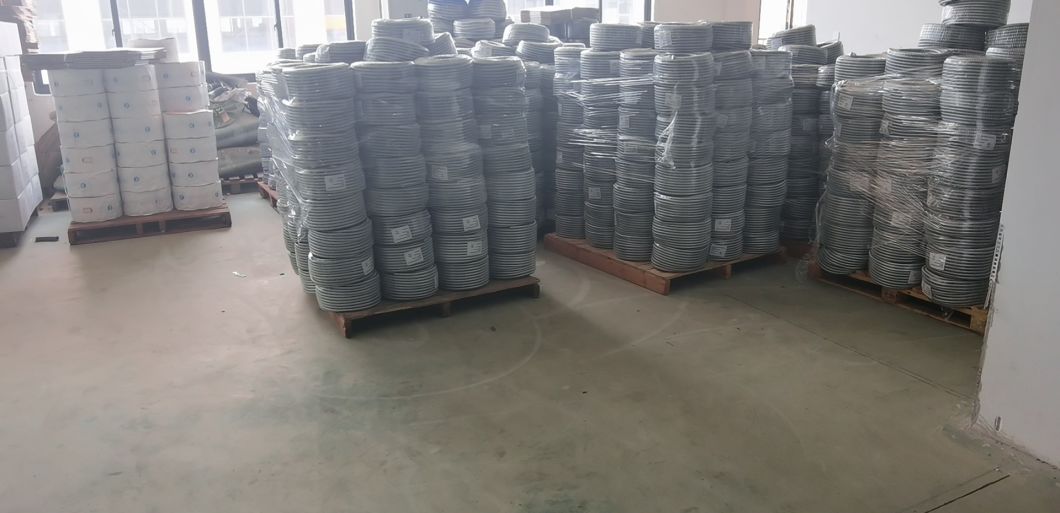

Packaging & Shipping

UL Listed Steel Flexible Conduit 4"UL Listed Steel Flexible Conduit 4"

Company Profile


1.Q: What kind of material you can offer?

2.Q: What kind of standard you are following?
A: We are producing following by UL standard, most popular around the world,

of course, we also have customized products.You can provide your specification.

3.Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.

4.Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.

5.Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.

6.Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.

7.Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.

8.Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.

9.Q: How about your capability in manufacturing?

Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.

Choosing us is the best choice.
