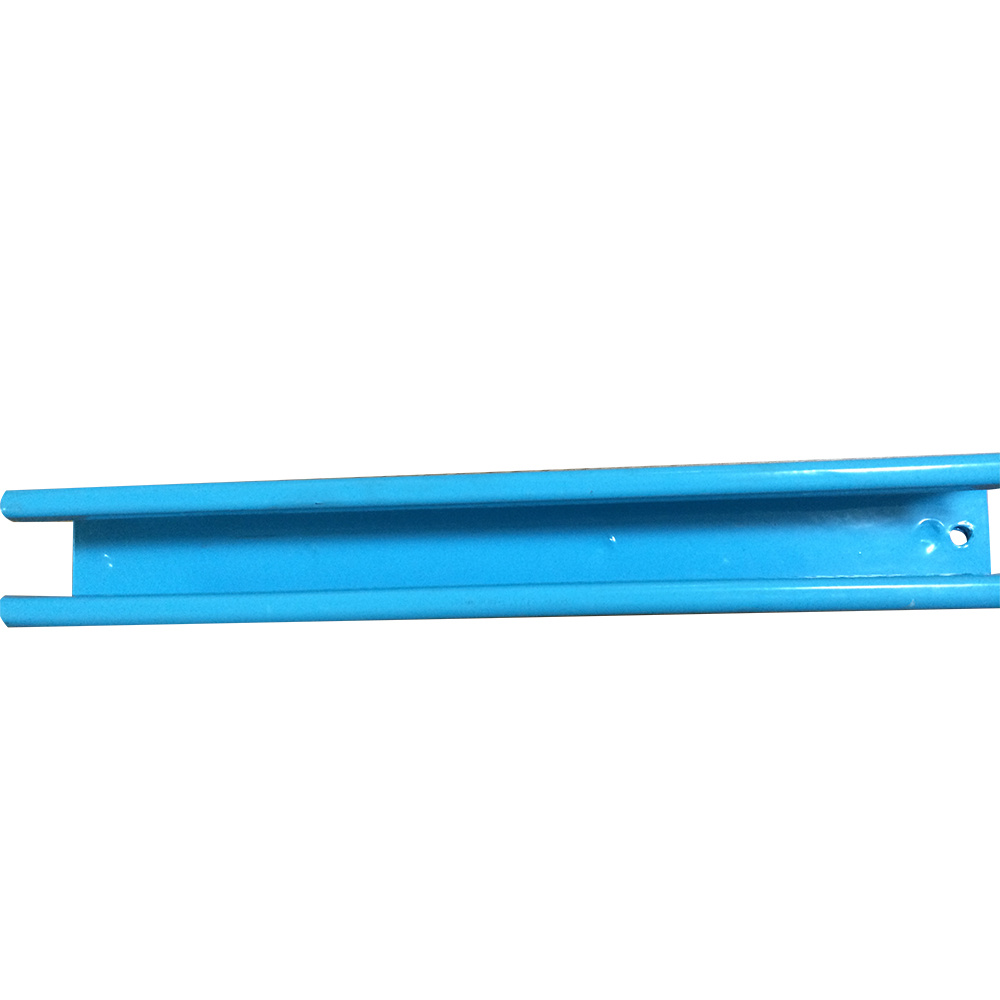

Unistrut C Channel Darcromate Finish

  • Support Online Service

  • One Year

  • Strut Channel

  • UL

  • C Channel

  • Perforated

Product Description

41 21 Unistrut C Channel Darcromate High Quality Slotted 3meters Length 1.20mm To 2.80MM Thickness Painting Also have

C Channel is the original metal framing strut channel and has been used in countless applications over 20 years. Commonly known as 12 Gauge Standard or Deep Strut Channel, it is the global standard for strut metal framing.

This channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples.
C channel is for seismic bracing and will be included in our upcoming OPM use as a Strut-Type Channel Raceway.

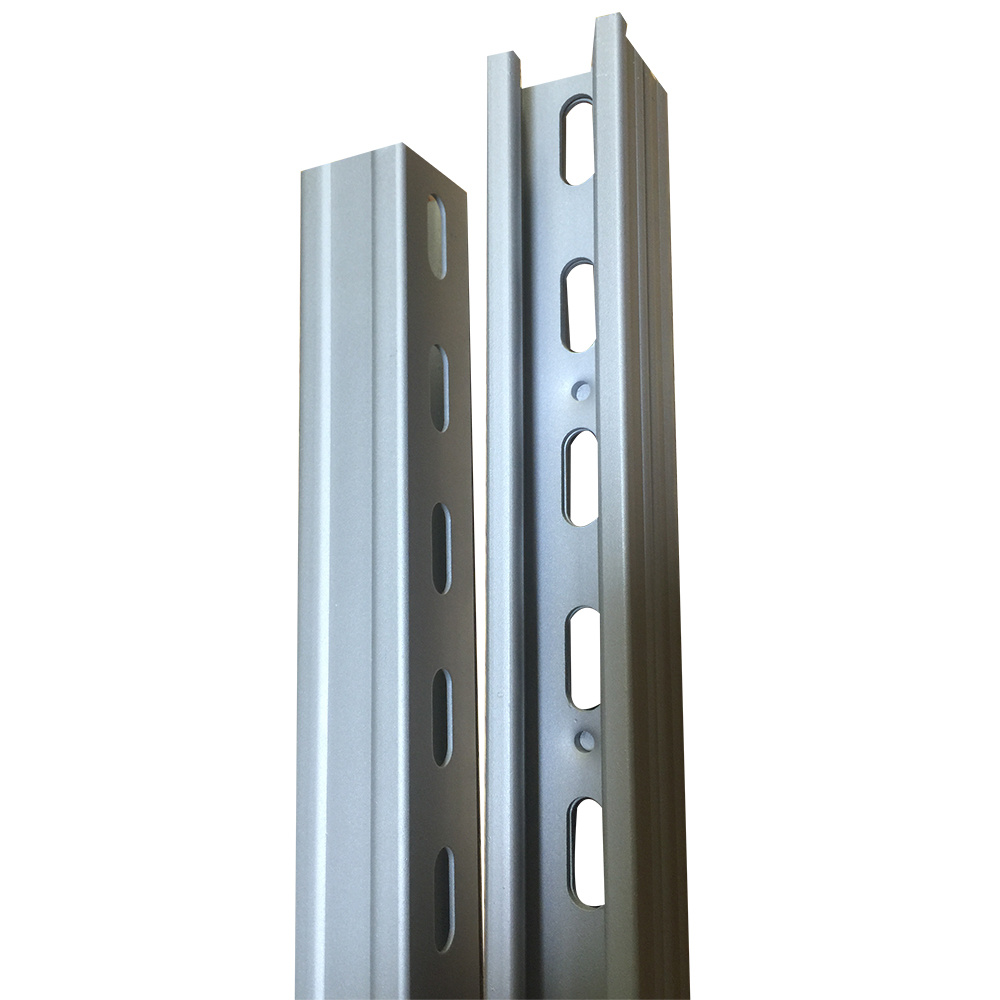

Product dimensions are 1 5/8" wide x 1 5/8" tall x 12 ga. thick, solid. Punched holes are also available for ease of installation.

Our P1000 is available in Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA).

Beam Loading - 41*41
Max Allow.
Uniform Load
Deflection at
Uniform Load
Uniform Loading at Deflection Lateral Bracing
Reduction Factor
24 1,690 0.06 1,690 1,690 1,690 1.00
36 1,130 0.13 1,130 1,130 900 0.94
48 850 0.22 850 760 500 0.88
60 680 0.35 650 480 320 0.82
72 560 0.5 450 340 220 0.78
84 480 0.68 330 250 160 0.75
96 420 0.89 250 190 130 0.71
108 380 1.14 200 150 100 0.69
120 340 1.40 160 120 80 0.66
144 280 2.00 110 80 60 0.61
168 240 2.72 80 60 40 0.55
192 210 3.55 60 50 NR 0.51
216 190 4.58 50 40 NR 0.47
240 170 5.62 40 NR NR 0.44

Quick Details
AiSi, ASTM, bs, DIN, GB, JIS

41*41, 41*21,41x62,41x82

Stainless Steel,aluminum, steel

Place of Origin:
Zhejiang, China

Brand Name:

Model Number:

U Channel

cable support

Perforated Or Not:
Is Perforated

uminium Solar Strut Channel Unistrut Channel
Mild steel

HDG, Powder coated, Eletronic-gal

MOQDelivary time:
Standard sizes supplied for all

Delivary time:
10-20 days for average quantity


Free available Aluminium Solar Strut Channel

Steel thickness:
0.8-3mm Aluminium Solar Strut Channel

Payment terms:
30% deposite Aluminium Solar Strut Channel

1) Pre-galvanized, Black, PVC coated & hot dip galvanized.

2) Can make the angle parts with slip-proof.

3) Each meter side printed with size, logo & standard.

4) Gal.zinc thickness is changing according the finish different.

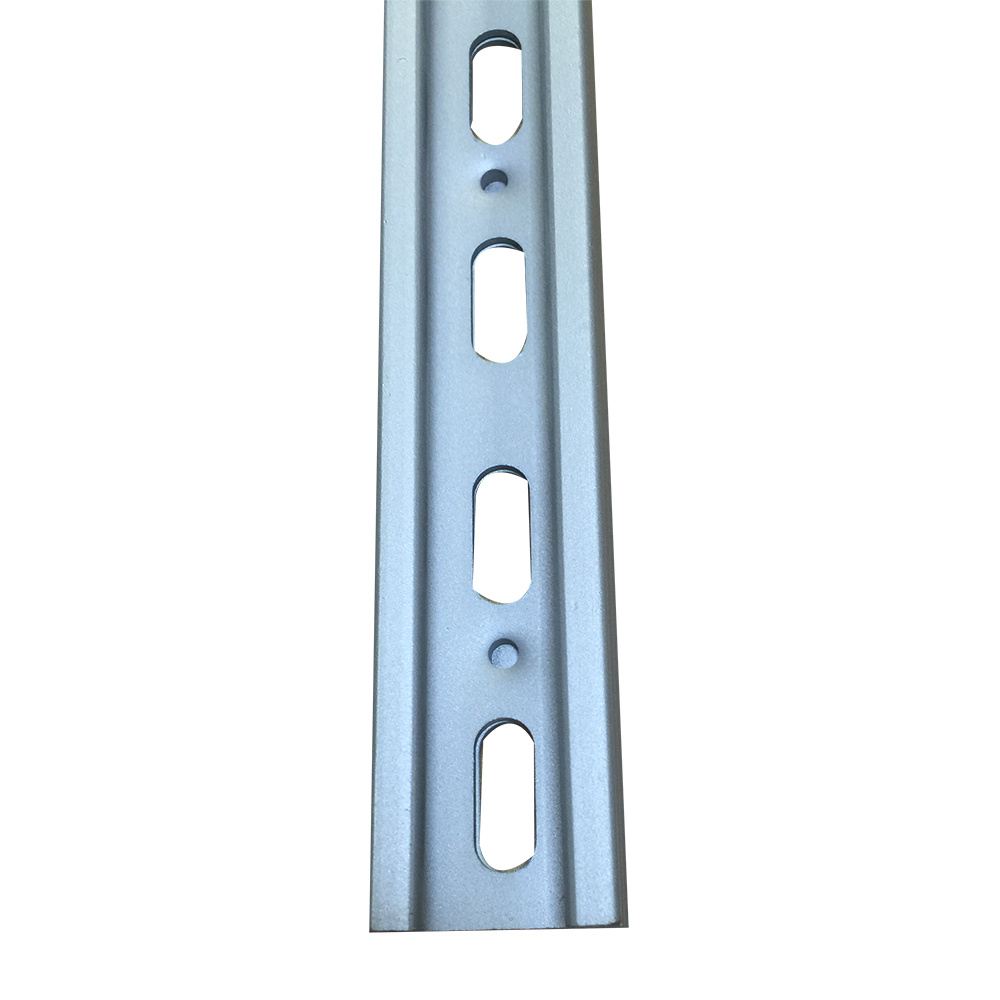

5) The slotted hole size 1-1/8"(28.60mm)*9/16"(14.30mm).

6) Two, three, four and six meters available.

Unistrut C Channel Darcromate FinishUnistrut C Channel Darcromate FinishUnistrut C Channel Darcromate Finish


Unistrut C Channel Darcromate Finish

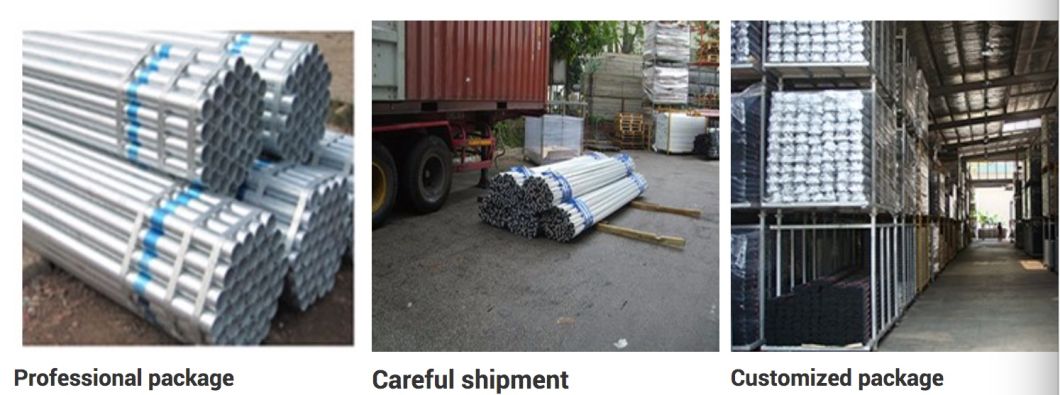

Packaging & Shipping

Unistrut C Channel Darcromate Finish
Unistrut C Channel Darcromate Finish

Company Profile

Unistrut C Channel Darcromate FinishUnistrut C Channel Darcromate Finish

1.Q: What kind of material you can offer?

2.Q: What kind of standard you are following?

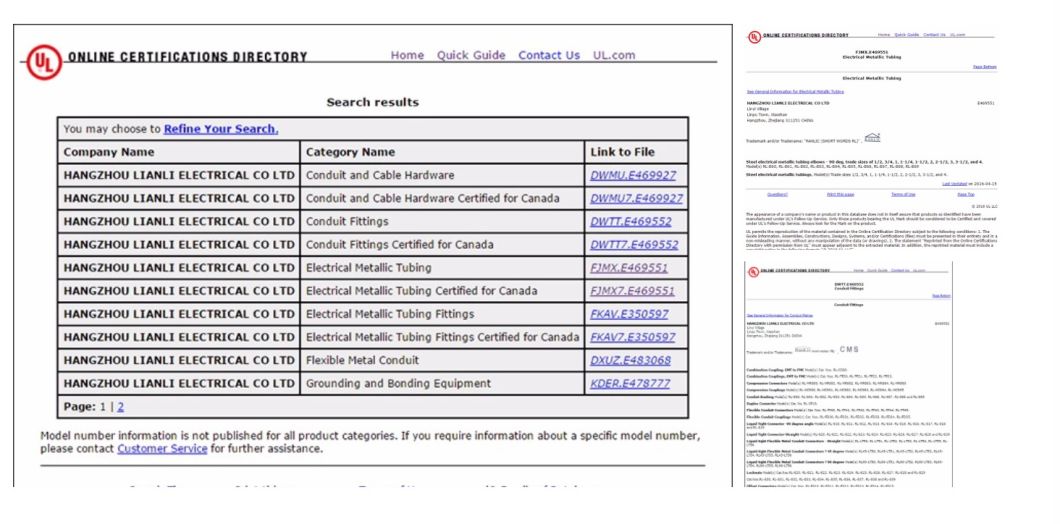

A: We are producing following by UL standard, most popular around the world,

of course, we also have customized products.You can provide your specification.

3.Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.

4.Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.

5.Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.

6.Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.

7.Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.

8.Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.

9.Q: How about your capability in manufacturing?

Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.

Choosing us is the best choice.
