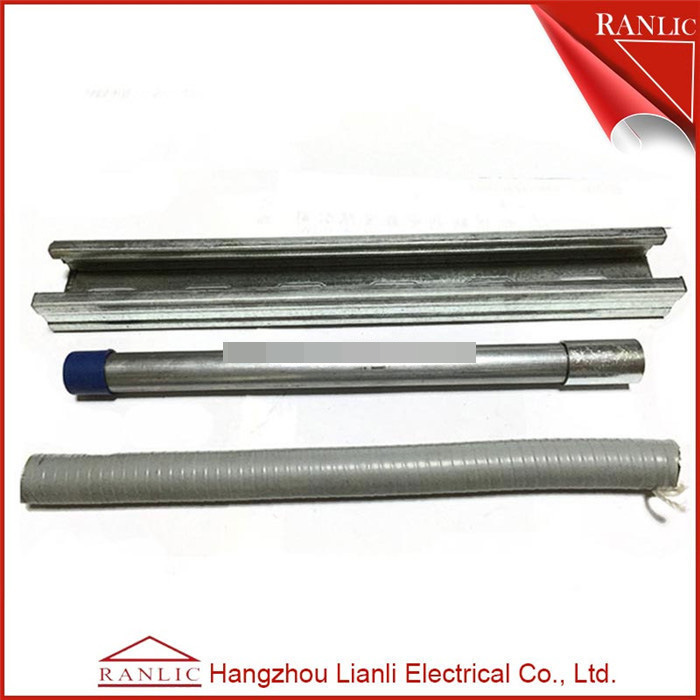

Unistrut Channel Slotted Rigid Conduit 2.8mm

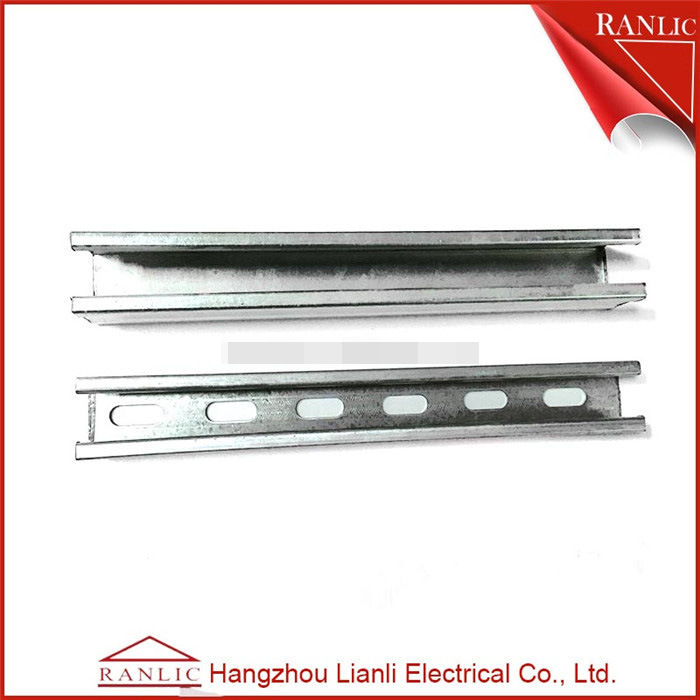

Descriptions of c channel
1) Pre-galvanized, Black, PVC coated & hot dip galvanized.
2) Can make the angle parts with slip-proof.
3) Each meter side printed with size, logo & standard.
4) Gal.zinc thickness is changing according the finish different.
5) The slotted hole size 1-1/8"(28.60mm)*9/16"(14.30mm).
6) Two, three, four and six meters available.
Strut Clamp Size
| Catalog | Trade Size | Conduit | Width | Bolt Size | Bolt Hole | Wall | Quantity | Weight(kgs) | |
| Number | Inch | Diameter | mm ±0.50 | Inch | Diameter | Thick(mm) | Per Carton | Per Carton | |
| RL-630 | 1/2" | 21.34 | 31.80mm | 1/4"-20*1" | 7.11mm±0.15 | 1.68mm±0.20 | 250 | 9.90±1.00 | |
| RL-631 | 3/4" | 26.67 | 31.80mm | 1/4"-20*1" | 7.11mm±0.15 | 1.68mm±0.20 | 200 | 9.24±1.00 | |
| RL-632 | 1" | 33.40 | 31.80mm | 1/4"-20*1" | 7.11mm±0.15 | 1.90mm±0.20 | 180 | 9.74±1.00 | |
| RL-633 | 1-1/4" | 42.16 | 31.80mm | 1/4"-20*1" | 7.11mm±0.15 | 1.90mm±0.20 | 150 | 9.05±1.00 | |
| RL-634 | 1-1/2" | 48.26 | 31.80mm | 5/16"-18*1-1/4" | 8.64mm±0.15 | 2.66mm±0.20 | 150 | 9.72±1.00 | |
| RL-635 | 2" | 60.33 | 31.80mm | 5/16"-18*1-1/4" | 8.64mm±0.15 | 2.66mm±0.20 | 100 | 7.60±1.00 | |
| RL-636 | 2-1/2" | 73.03 | 31.80mm | 5/16"-18*1-1/4" | 8.64mm±0.15 | 2.66mm±0.20 | 100 | 9.25±1.00 | |
| RL-637 | 3" | 88.90 | 31.80mm | 5/16"-18*1-1/4" | 8.64mm±0.15 | 2.66mm±0.20 | 100 | 10.56±1.00 | |
| RL-638 | 3-1/2" | 101.60 | 31.80mm | 3/8"-16*1-1/4" | 10.67mm±0.15 | 3.04mm±0.20 | 80 | 9.60±1.00 | |
| RL-639 | 4" | 114.30 | 31.80mm | 3/8"-16*1-1/4" | 10.67mm±0.15 | 3.04mm±0.20 | 80 | 10.76±1.00 | |
1.Q: What kind of material you can offer?
A: We can offer you GALVANIZED STEEL, STAINLESS STEEL, ALUMINUM, Zinc, etc.

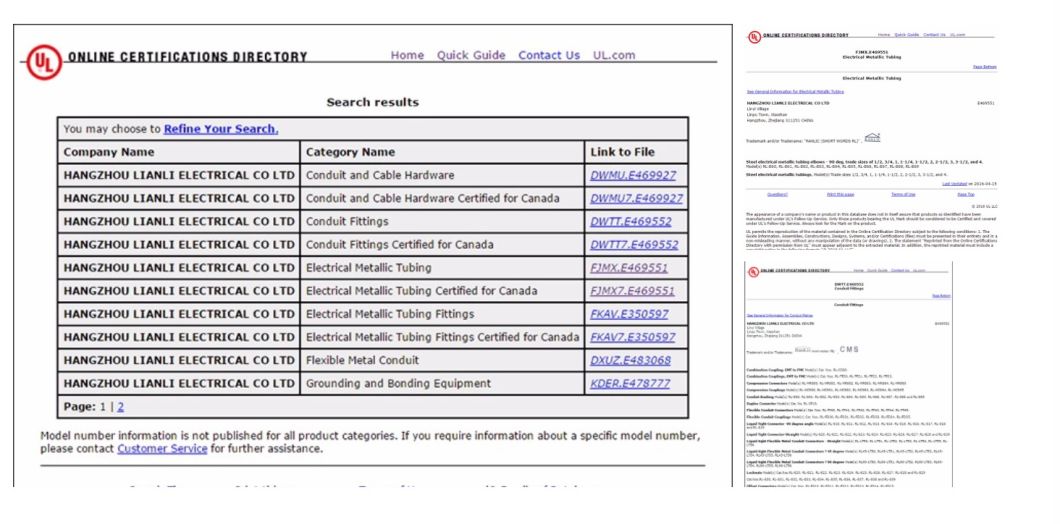

2.Q: What kind of standard you are following?
A: We are producing following by UL standard, most popular around the world,
of course, we also have customized products.You can provide your specification.
3.Q: Could you change the size for the customer?
A: Yes, we do for some customer special size.
4.Q: How many days can you deliver the order?
A: Normally after deposit or L/C 20-30 days, actually it depends on your request.
5.Q: What about the payment?
A: We can accept L/C, T/T, D/P and trusted payment methods.
6.Q: Do you provide samples?
A: yes, we can offer the standard product sample freely, but we do not bear the freight. Sample preparation will take some time, and if you asked to use DHL, FedEx, etc. to send samples, you can inform us in advance to prepare.
7.Q: Are you a trading company or manufacturing company?
A: Both we are, we have ten years experiences in foreign trading business and more than five years in electrical conduit industry. Of course, we are always expanding our business.
8.Q: How can you guarantee your products?
A: we guarantee your 100% satisfaction on all our products. Please feel free to feedback us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order. For foreign orders, we ensure every order carefully. In some special cases, we will give some discounts as a solution.
9.Q: How about your capability in manufacturing?

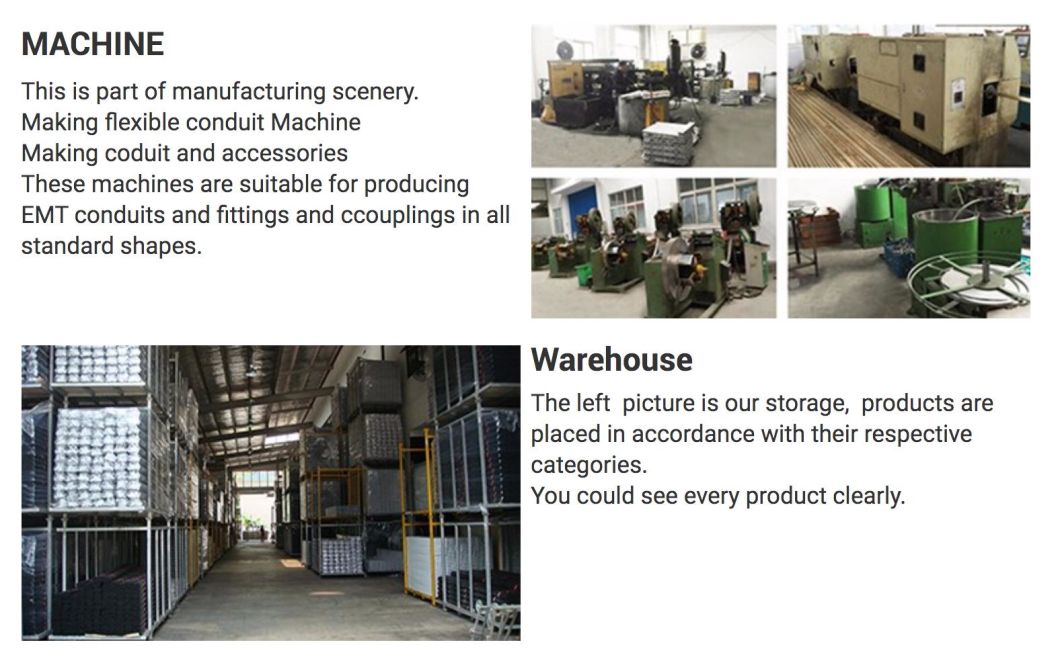

Based on reasonable price, good quality, great after service, and Workers' Passion and Effort, we are capable of manufacturing 6000 tons of steel conduit per year and 4000 tons of die casting and steel accessories anually.
Choosing us is the best choice.
